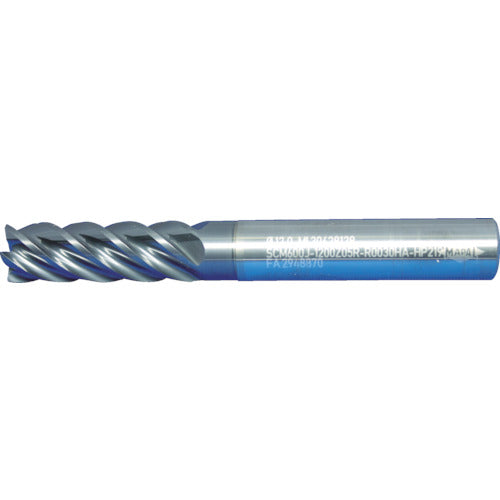

MAPAL Carbide Radius End Mill OptiMill-Titan-Trochoid 5-blade for titanium Blade diameter 8mm Blade length 24mm Total length 68mm Shank diameter 8mm SCM600J-0800Z05R-R0020HA-HP219 1 piece

Catalog number: SCM600J-0800Z05R-R0020HA-HP219 Features: ●Supports trochoidal machining up to 3 x D. (For titanium) ●High speed/high feed machining is possible at 2 to 3 times the conventional speed. ●Special chip breaker is used for optimal chip removal. Applications: ●Workpiece: titanium, titanium alloy. Specifications: ●Blade diameter (mm): 8 ●Corner radius (mm): 0.2 ●Blade length (mm): 24 ●Total length (mm): 68 ●Shank diameter (mm): 8 ●Surface treatment: HP219 coating ●Twist angle 41°/42° Material/Finish: ●Micro grain carbide Note: ●Special software is required for dynamic trochoidal machining.
