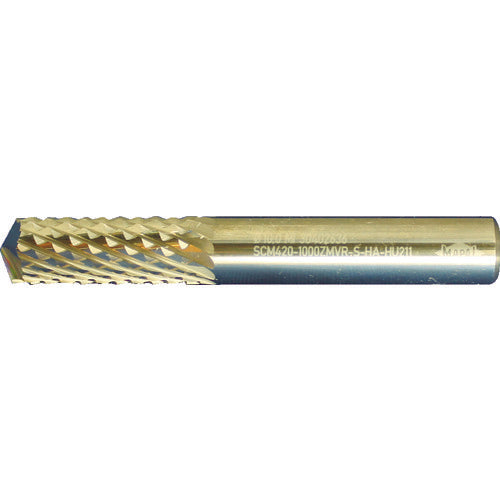

MAPAL Carbide Roughing End Mill OptiMill-Composite (SCM420) Composite Material Router Blade Diameter 4 x Blade Length 16 x Total Length 50 mm SCM420-0400ZMVR-HA-HU211 1 piece

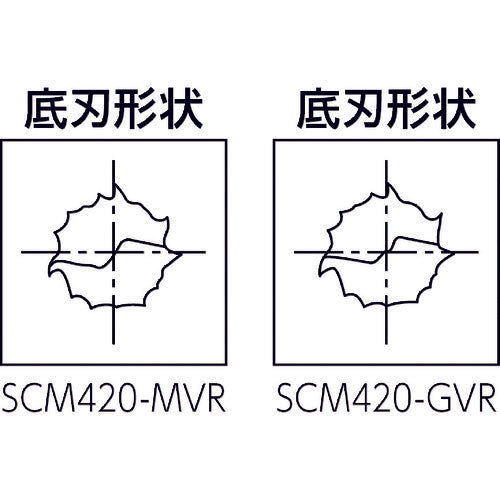

Catalog number: SCM420-0400ZMVR-HA-HU211 Features: ●Designed to be ideal for pocket machining of composite materials such as CFRP. ●The bottom cutting edge is shaped like a drill, allowing vertical machining. ●Due to the right-hand twist, the cutting chips rise upwards. Applications: ●Workpiece: Composite materials such as CFRP. Specifications: ●Blade diameter (mm): 4 ●Blade length (mm): 16 ●Total length (mm): 50 ●Shank diameter (mm): 4 ●Fine cross-nick router ●Non-coated ●Bottom cutting edge: Drill ●For high-efficiency machining of thick materials Material/Finish: ●Ultra-fine particle carbide alloy
