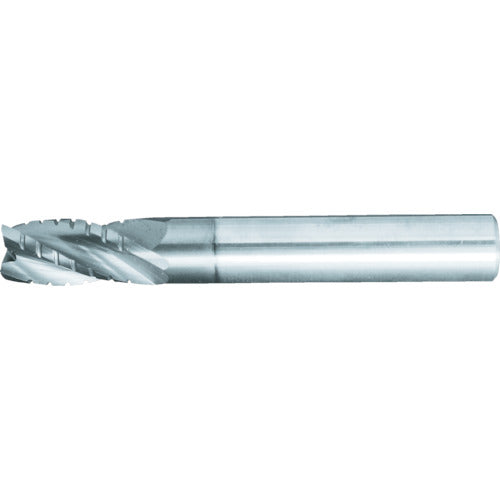

MAPAL Carbide Roughing End Mill Opti-Mill (SCM220) Rough & Finish Blade diameter 16 mm Blade length 32 mm Total length 92 mm Shank diameter 16 mm SCM220-1600Z04R-F0016HA-HP219 1 piece

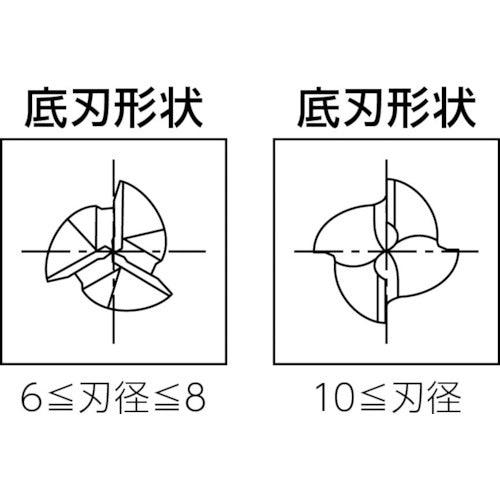

Catalog number: SCM220-1600Z04R-F0016HA-HP219 Features: ● A "rough and finish" design that can be used for rough to semi-finishing with one tool. ● The cutting edge is chamfered for rigidity (excluding φ6). Applications: ● Workpiece: Carbon steel, alloy steel, cast iron, stainless steel. Specifications: ● Blade diameter (mm): 16 ● Blade length (mm): 32 ● Total length (mm): 92 ● Shank diameter (mm): 16 ● Number of blades (pieces): 4 ● Surface treatment: HP214 coating ● Number of blades: 4 ● Twist angle 45° Material/Finish: ● Micro grain carbide
