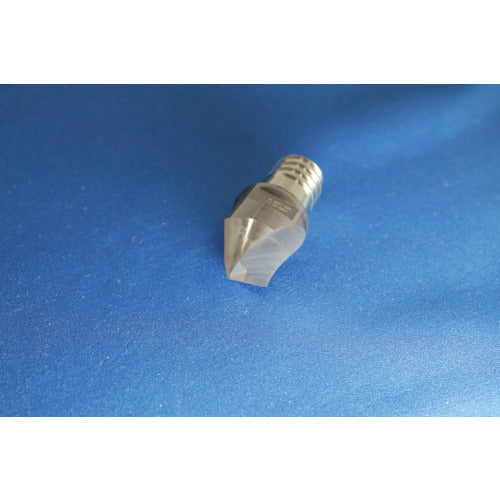

MAPAL CPMill-Spot-Drill "CPD100" CPD100-1600Z02-W090-12-HP338 1 piece

Catalog number: CPD100-1600Z02-W090-12-HP338 Features: ● Adopts the new connection method "CFS". ● Promises high runout accuracy of less than 5 μm. ● Features easy operation and high stability. ● 90° point drill shape. Applications: ● Workpiece: carbon steel, alloy steel, cast iron, stainless steel, light alloy. Specifications: ● Shank diameter (mm): 12 ● Groove length (mm): 12 ● Blade diameter (mm): 16 ● Total length (mm): 20 ● Surface treatment ● Blade length (mm): 12 ● Twist angle 15° Material/Finish: ● Micro grain carbide
