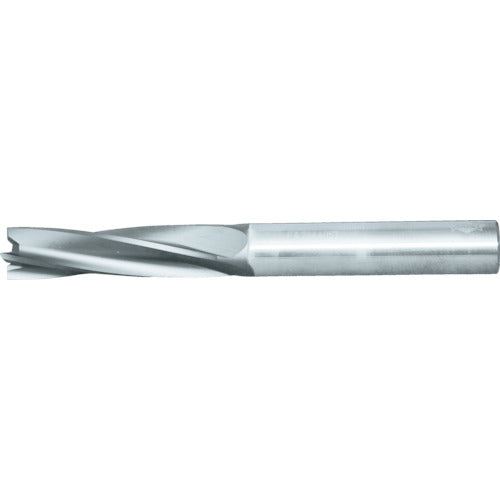

MAPAL OptiMill-Composite (SCM480) Composite End Mill SCM480-1000Z04R-S-HA-HC619 1 piece

MAPAL OptiMill-Composite (SCM480) Composite End Mill SCM480-1000Z04R-S-HA-HC619 1 piece

JAN： 　
Carbide Roughing End Mill Carbide roughing end mill (for aircraft) Cutting Tools Mapal End Mill Z Turning and milling tools
¥55,738
¥55,738
Sale Sold out
Shipping calculated at checkout.
Catalog number: SCM480-1000Z04R-S-HA-HC619 Features: ● Achieves good finishing when machining composite materials such as CFRP. ● The weak twist angle reduces cutting resistance in the thrust direction, reducing burrs and delamination. Applications: ● Workpiece: Composite materials such as CFRP. ● For the aviation industry. Specifications: ● Blade diameter (mm): 10 ● Blade length (mm): 40 ● Total length (mm): 92 ● Shank diameter (mm): 10 ● Number of blades (pieces): 4 ● Surface treatment: HC619 diamond coating ● Twist angle (°): 12.5 Material/Finish: ● Ultra-fine particle cemented carbide alloy
