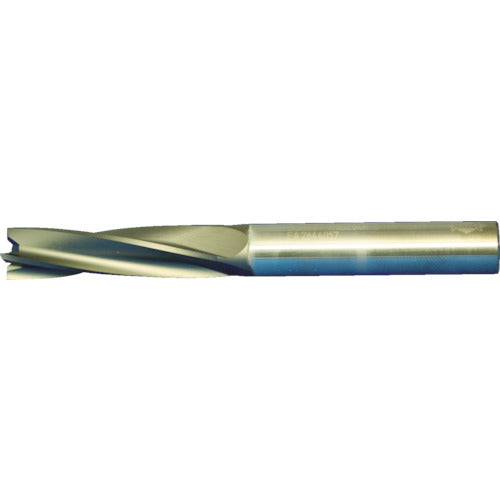

MAPAL OptiMill-Composite (SCM480) End mill for composite materials SCM480-1600Z04R-S-HA-HC619 1 piece

Catalog number: SCM480-1600Z04R-S-HA-HC619 Features: ● Achieves good finishing when machining composite materials such as CFRP. ● The weak twist angle reduces cutting resistance in the thrust direction, reducing burrs and delamination. Applications: ● Workpiece: Composite materials such as CFRP. ● For the aviation industry. Specifications: ● Blade diameter (mm): 16 ● Blade length (mm): 40 ● Total length (mm): 100 ● Shank diameter (mm): 16 ● Number of blades (pieces): 4 ● Surface treatment: HC619 diamond coating ● Twist angle (°): 12.5 Material/Finish: ● Ultra-fine particle carbide alloy
