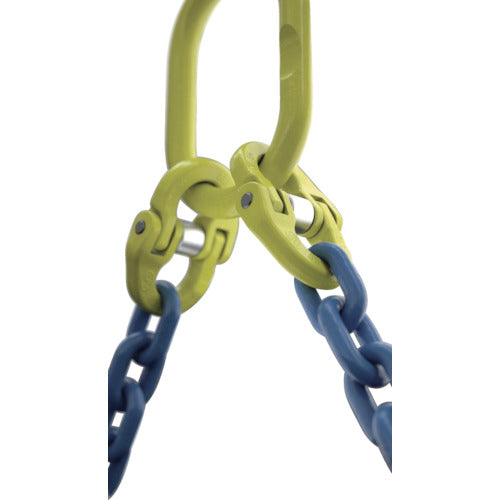

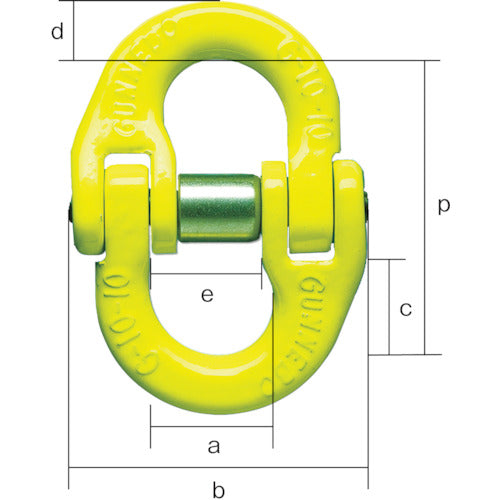

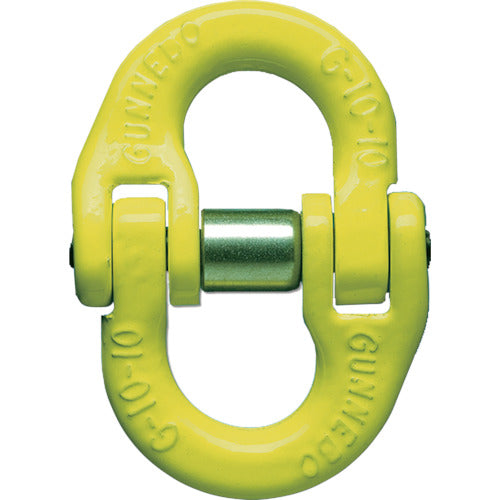

Catalogue number: GA-10-10 Features: ● Metal fittings for connecting chains to master links, hooks, etc. ● Uses a helical spring for the collar. ● The built-in helical spring allows the fastener to be easily attached and detached with just a hammer, and the pin is securely locked even after repeated use. Uses: ● For connecting chains and metal fittings. Specifications: ● Basic load (t): 3.2 ● Suitable chain wire diameter (mm): 10 ● Dimension (mm) a: 28 ● Dimension (mm) b: 67 ● Dimension (mm) c: 23 ● Dimension (mm) d: 13 ● Dimension (mm) e: 25 ● Dimension (mm) p: 68 Material/Finish: ● Special alloy steel
