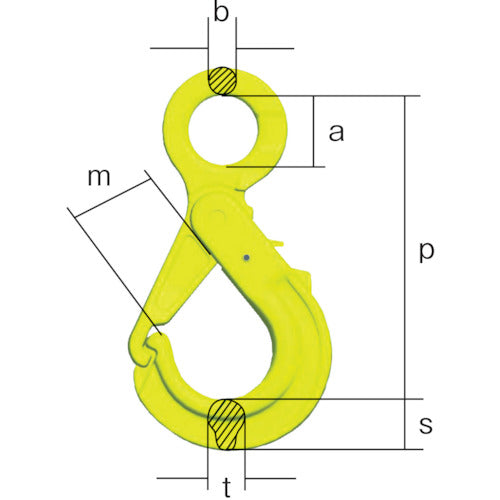

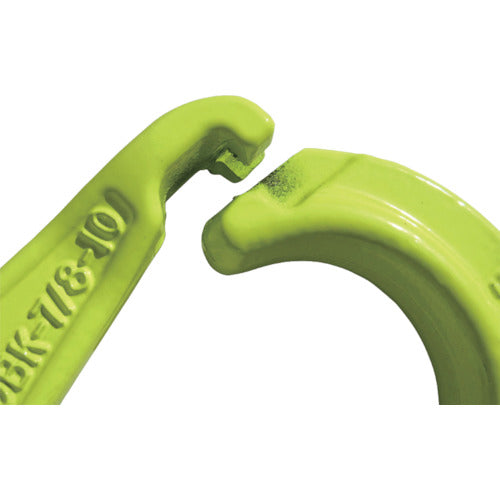

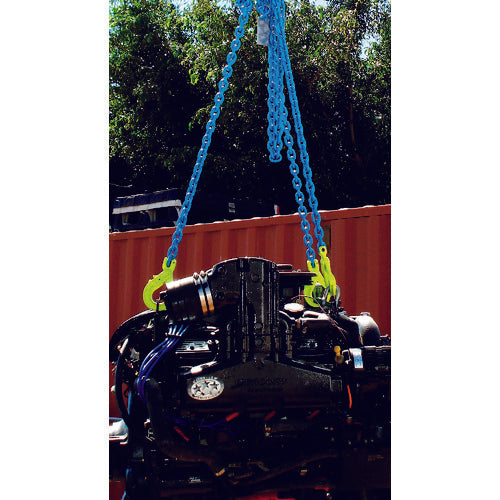

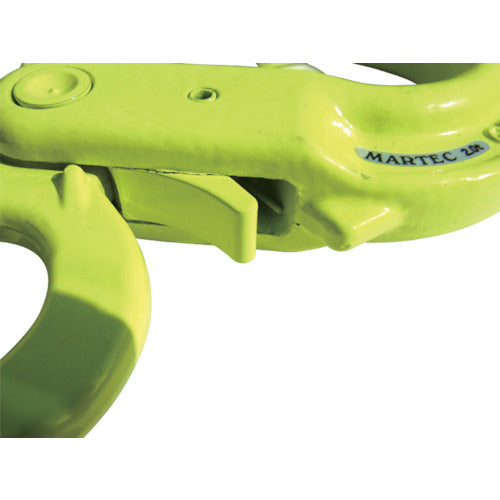

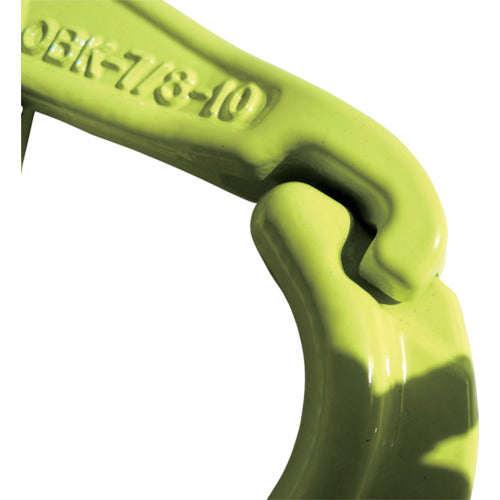

Catalog number: OBK-6-10 Features: ●The hook and latch are integrated with an interlocking shape, preventing lateral movement of the latch and increasing safety. ●Includes a danger avoidance indicator that prevents the hook and latch from engaging when the hook stretches due to excessive load. ●Includes a danger avoidance indicator that prevents the hook and latch from engaging when the hook stretches. Applications: ●End fitting for slinging wire ropes, chains, etc. Specifications: ●Basic load capacity (t): 1.2 ●Applicable chain wire diameter (mm): 6 ●Dimensions (mm) H: 17 ●Dimensions (mm) m: 26 ●Dimensions (mm) p: 103 ●Dimensions (mm) s: 17 ●Dimensions (mm) t: 15 ●Breaking load (kN): 59 ●Dimensions (mm) a: 22 ●Dimensions (mm) b: 9
