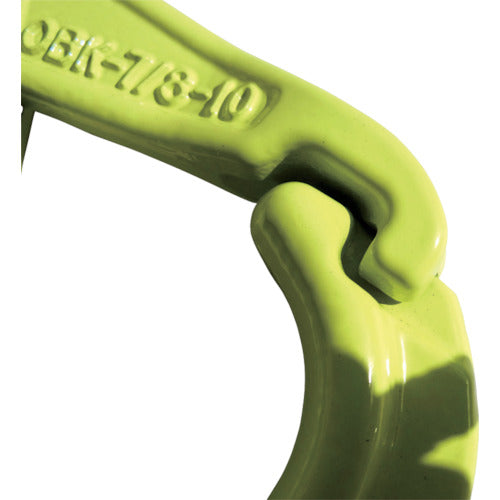

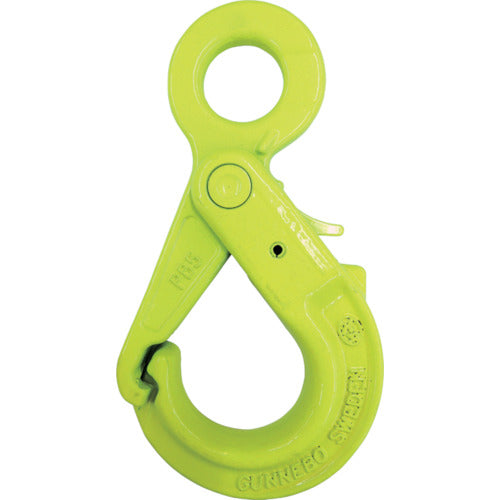

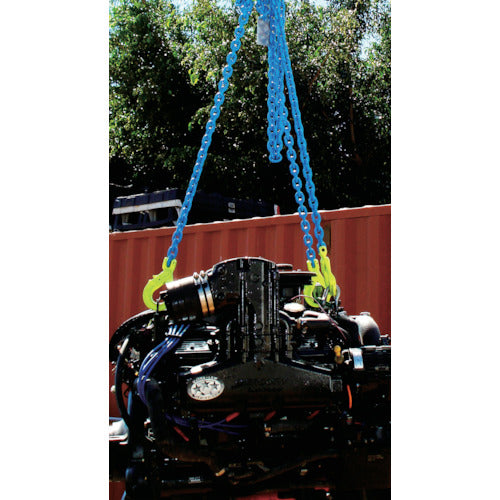

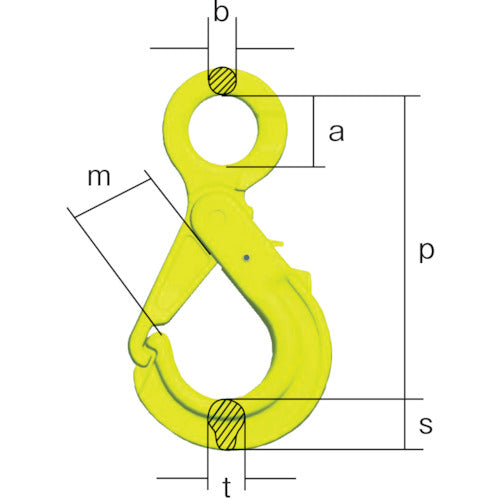

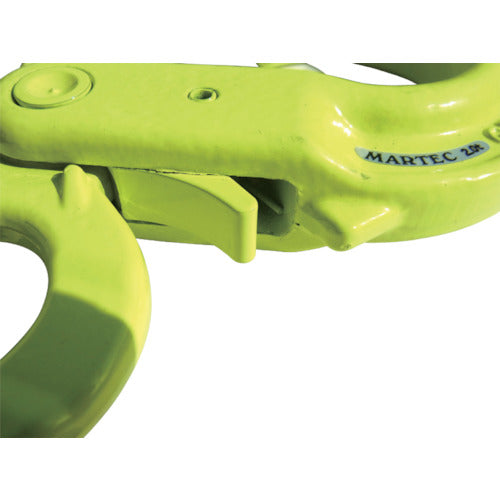

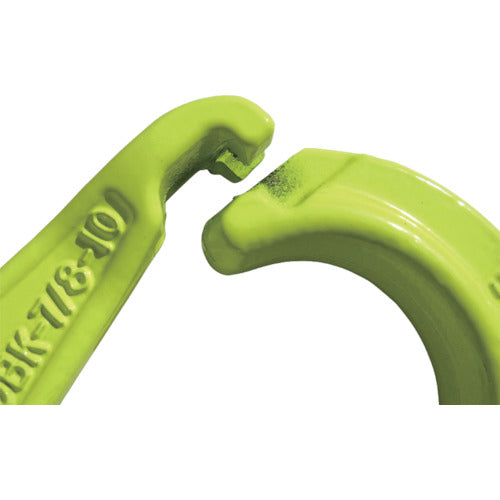

Catalog number: OBK-7/8-10 Features: ●The hook and latch are integrated into a shape that interlocks with each other, preventing the latch from swaying sideways and enhancing safety. ●Includes a danger avoidance indicator that prevents the hook and latch from interlocking when the hook is stretched due to excessive load. ●Includes a danger avoidance indicator that prevents the hook and latch from interlocking when the hook is stretched. Applications: ●End fitting for slinging wire ropes, chains, etc. Specifications: ●Basic load capacity (t): 2.0 ●Applicable chain wire diameter (mm): 8 ●Dimensions (mm) H: 22 ●Dimensions (mm) m: 37 ●Dimensions (mm) p: 139 ●Dimensions (mm) s: 22 ●Dimensions (mm) t: 20 ●Breaking load (kN): 98 ●Dimensions (mm) b: 10 ●Dimensions (mm) a: 28
