MARTEC Swivel Hook BKL-6 BKL-6-10 1 piece

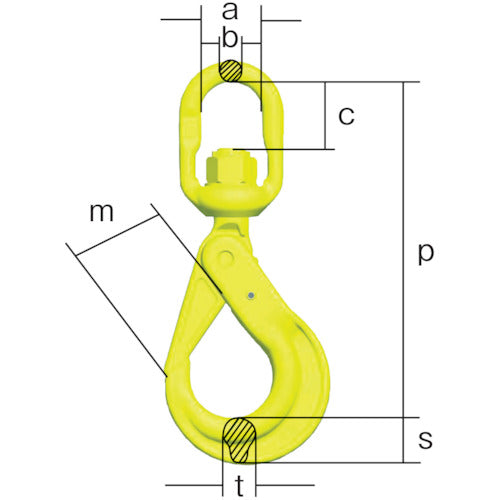

Catalogue number: BKL-6-10 Features: ●Locking hook with swivel. ●Thrust washer ensures smooth rotation and has a function to rewind chains and wires. ●Locking hook with a function to rewind chains and wires. Applications: ●End fitting for slinging wire ropes, chains, etc. Specifications: ●Basic load capacity (t): 1.2 ●Applicable chain diameter (mm): 6 ●Dimensions (mm) M: 29 ●Dimensions (mm) P: 149 ●Dimensions (mm) a: 33 ●Dimensions (mm) b: 11 ●Dimensions (mm) c: 22.5 ●Dimensions (mm) m: 29 ●Dimensions (mm) p: 149 ●Dimensions (mm) s: 21 ●Dimensions (mm) t: 15 ●Breaking load (kN): 59 ●Dimensions (mm) b: ●Dimensions (mm) c: ●Dimensions (mm) a: Material/Finish: ●Special alloy steel
