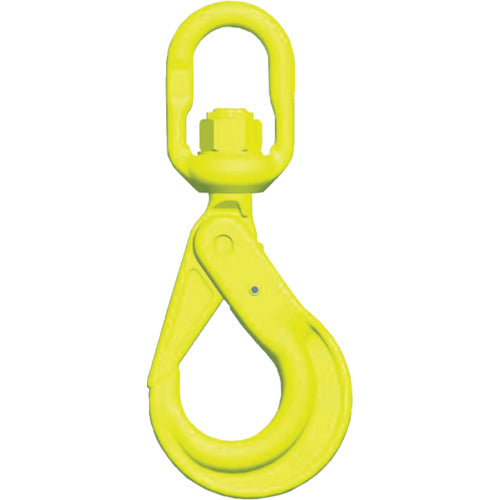

MARTEC Swivel Hook BKL-7/8 BKL-7/8-10 1 piece

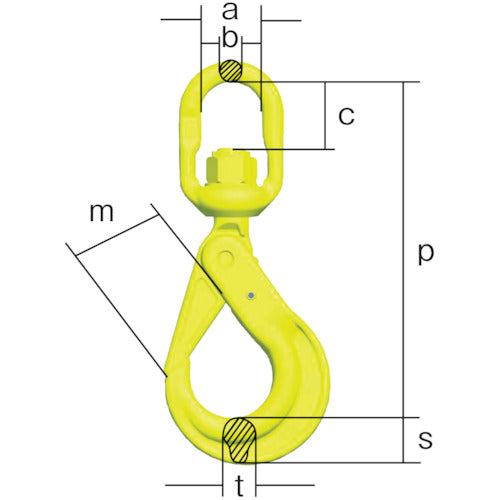

Catalog number: BKL-7/8-10 Features: ●Locking hook with swivel. ●Thrust washer ensures smooth rotation and has a function to rewind chains and wires. ●Locking hook with a function to rewind chains and wires. Applications: ●End fitting for slinging wire ropes and chains. Specifications: ●Basic load capacity (t): 2.0 ●Applicable chain diameter (mm): 8 ●Dimensions (mm) M: 37 ●Dimensions (mm) P: 183 ●Dimensions (mm) a: 38 ●Dimensions (mm) b: 12 ●Dimensions (mm) c: 27 ●Dimensions (mm) m: 37 ●Dimensions (mm) p: 183 ●Dimensions (mm) s: 25 ●Dimensions (mm) t: 17 ●Breaking load (kN): 98 ●Dimensions (mm) b: 12 ●Dimensions (mm) c: 27 ●Dimensions (mm) a: 38 Material/Finish: ●Special alloy steel
