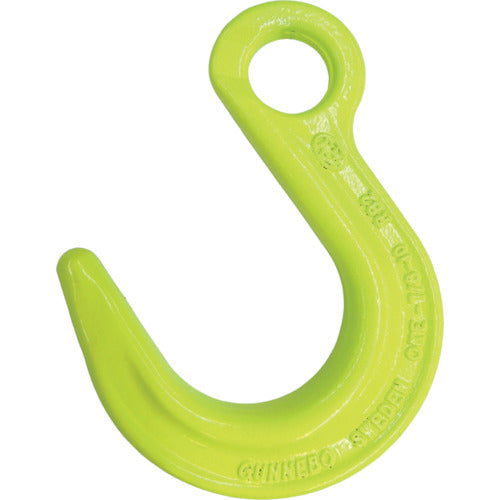

MARTEC Foundry Hook OKE-10 OKE-10-10 1 piece

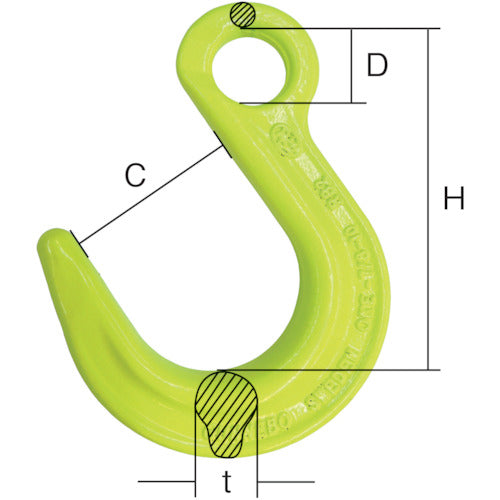

Catalogue number: OKE-10-10 Features: ●The opening is wider than that of a sling hook, making it ideal for hanging objects with thick shafts. ●The opening of the hook is wide, making it ideal for hanging objects with thick shafts. Applications: ●Hook for lifting steel sheets and objects with thick shafts. Specifications: ●Basic load capacity (t): 3.2 ●Applicable chain wire diameter (mm): 10 ●Dimension (mm) C: 76 ●Dimension (mm) D: 34 ●Dimension (mm) H: 151 ●Dimension (mm) p: 151 ●Dimension (mm) t: 26 ●Dimension (mm) n: 76 ●Dimension (mm) b: 14 ●Dimension (mm) a: 34 ●Dimension (mm) s: 29 ●Latch: None Material/Finish: ●Special alloy steel
