MARTEC Foundry Hook OKE-7/8 OKE-7/8-10 1 piece

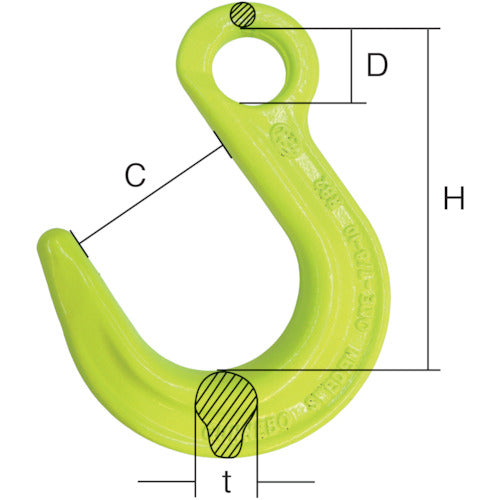

Catalogue number: OKE-7/8-10 Features: ●The opening is wider than that of a sling hook, making it ideal for hanging objects with thick shafts. ●The opening of the hook is wide, making it ideal for hanging objects with thick shafts. Applications: ●Hook for lifting steel sheets and objects with thick shafts. Specifications: ●Basic load capacity (t): 2.0 ●Applicable chain wire diameter (mm): 8 ●Dimension (mm) C: 63 ●Dimension (mm) D: 28 ●Dimension (mm) H: 124 ●Dimension (mm) p: 124 ●Dimension (mm) t: 21 ●Dimension (mm) n: 63 ●Dimension (mm) b: 11 ●Dimension (mm) a: 28 ●Dimension (mm) s: 26 ●Latch: None Material/Finish: ●Special alloy steel
