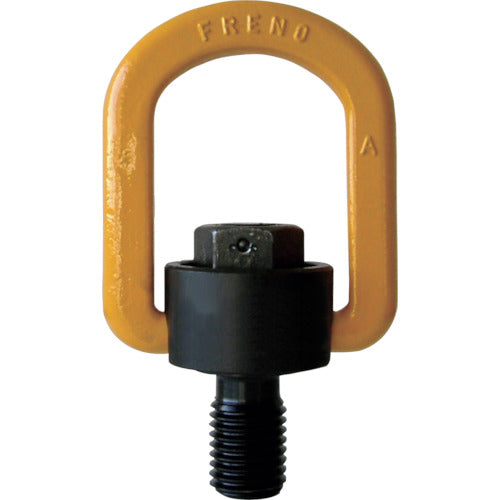

MARTEC Frenolink Bolt MB-100 Basic load capacity 20.0t MB-100 1 piece
MARTEC Frenolink Bolt MB-100 Basic load capacity 20.0t MB-100 1 piece
Regular price
¥234,696
Regular price
Sale price
¥234,696
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

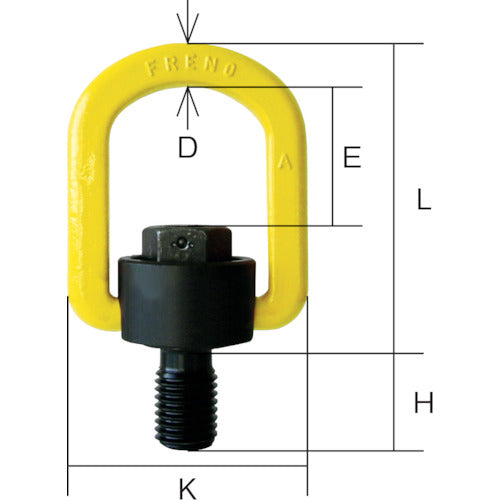

Catalogue number: MB-100 Features: ● The link always faces the load direction. Applications: ● For horizontal lifting and inversion of molds and concrete products. Specifications: ● Basic load capacity (t): 20.0 ● Bolt size: M100 ● D (mm): 49 ● Dimension (mm) D: 49 ● Dimension (mm) E: 127 ● Dimension (mm) H: 130 ● Dimension (mm) K: 272 ● Dimension (mm) L: 324 ● Type: Type B ● Breaking load (kN): 980.7 ● Bolt size (mm): M100 ● Free-moving eye bolt ● Safety factor of 5 or more in all directions Material/Finish: ● Special alloy steel
