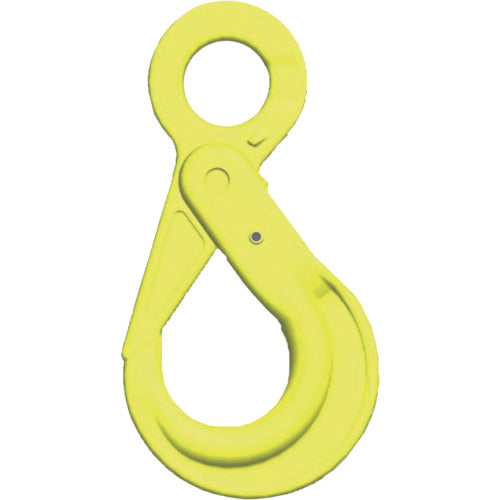

MARTEC Locking Hook BK-7/8 BK-7/8-10 1 piece
MARTEC Locking Hook BK-7/8 BK-7/8-10 1 piece
Regular price
¥9,148
Regular price
Sale price
¥9,148
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

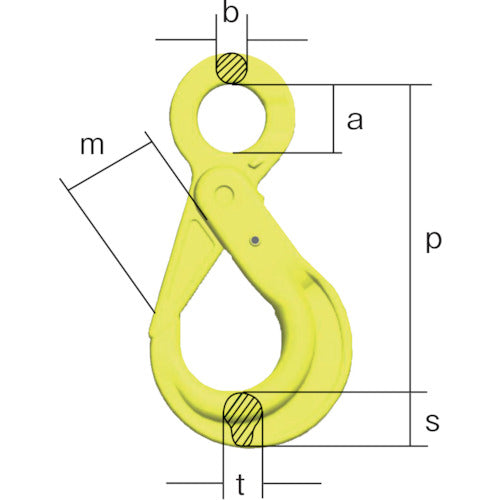

Catalog number: BK-7/8-10 Features: ● Locking the trigger prevents it from coming off, ensuring safe use. ● Opens outward, making it easy to attach and detach thick wires and belts. ● Locking the trigger prevents it from coming off. Applications: ● End fittings for lifting wire ropes, chains, etc. Specifications: ● Basic load capacity (t): 2.0 ● Suitable chain wire diameter (mm): 8 ● Dimensions (mm) P: 137 ● Dimensions (mm) a: 28 ● Dimensions (mm) b: 11 ● Dimensions (mm) m: 37 ● Dimensions (mm) p: 137 ● Dimensions (mm) s: 25 ● Dimensions (mm) t: 17 ● Breaking load (kN): 98 Material/Finish: ● Special alloy steel
