マーテック（株）

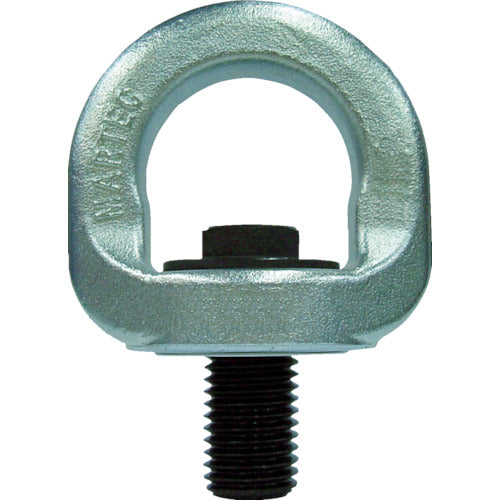

MARTEC Rotary Eyebolt RE-30 RE-30 1 piece

Name: MARTEC Rotary Eyebolt RE-30 RE-30 1 piece
Brand: マーテック（株）
SKU: 119-7017
Price: 19866 JPY
Availability: InStock

JAN：4545880130462 　

Cargo handling equipment Eyebolt Lifting clamps, slings, and load tie-downs MARTEC Handling hardware

¥19,866

Sale Sold out

Shipping calculated at checkout.

Quantity

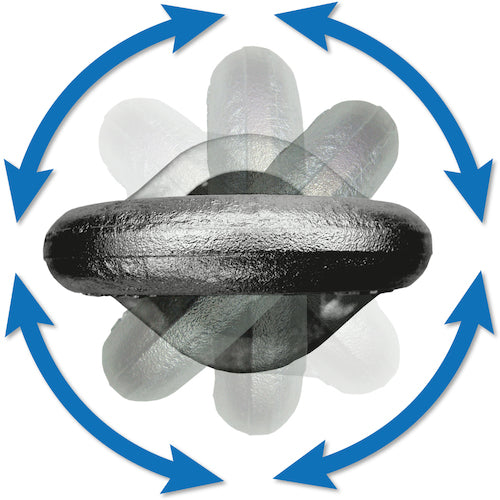

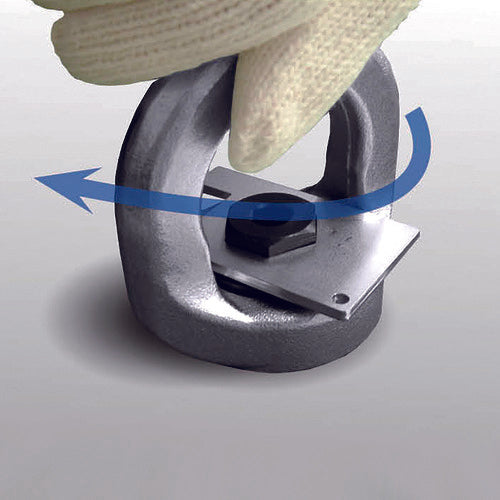

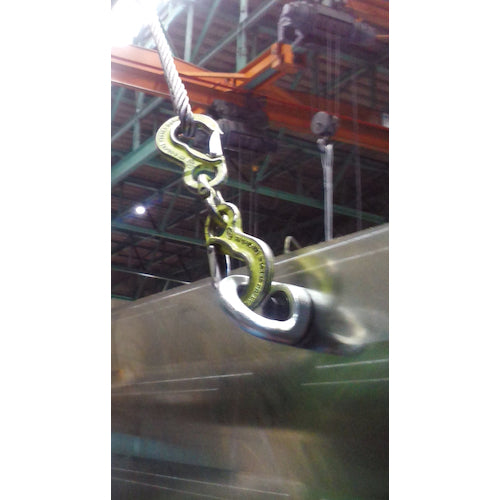

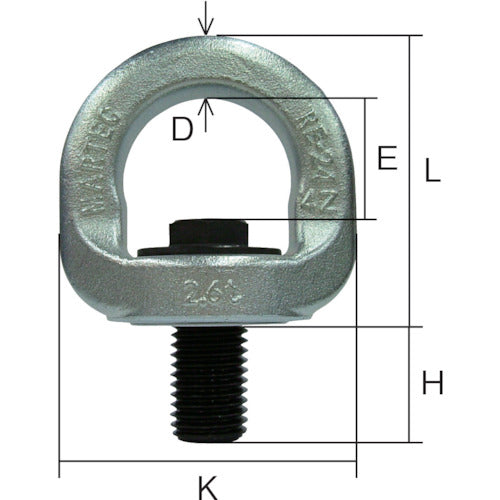

Catalogue number: RE-30 Features: ● Eye body rotates 360°. Applications: ● For lifting and transporting processing machines, molds, etc. Specifications: ● Basic load capacity (t): 4.0 ● Bolt size: M30 ● Dimension (mm) D: 25 ● Dimension (mm) E: 54 ● Dimension (mm) H: 45 ● Dimension (mm) K: 112 ● Dimension (mm) L: 114 ● Breaking load (kN): 196.13 ● Free-form eye bolt ● Safety factor of 5 or more in all directions Material/Finish: ● Special alloy steel
