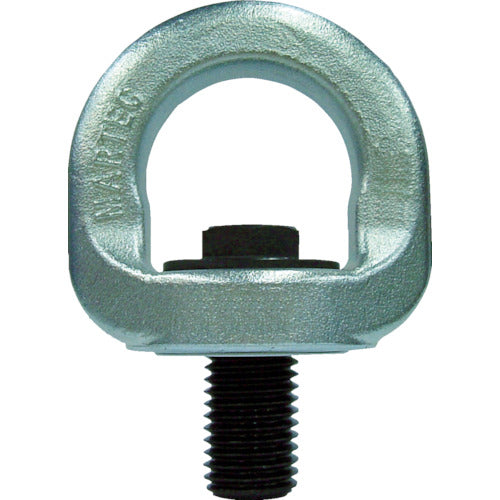

MARTEC Rotary Eyebolt RE-36 RE-36 1 piece

Name: MARTEC Rotary Eyebolt RE-36 RE-36 1 piece
Brand: マーテック（株）
SKU: 119-7020
Price: 25872 JPY
Availability: InStock

JAN：4545880130479 　

Cargo handling equipment Eyebolt Lifting clamps, slings, and load tie-downs MARTEC Handling hardware

¥25,872

Sale Sold out

Shipping calculated at checkout.

Quantity

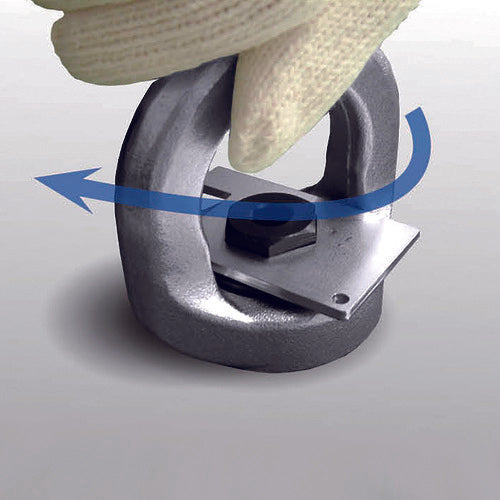

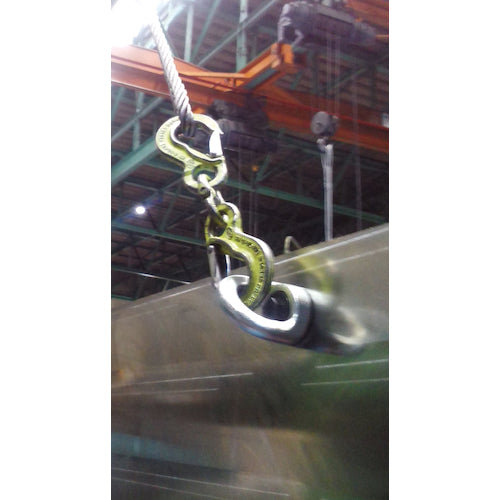

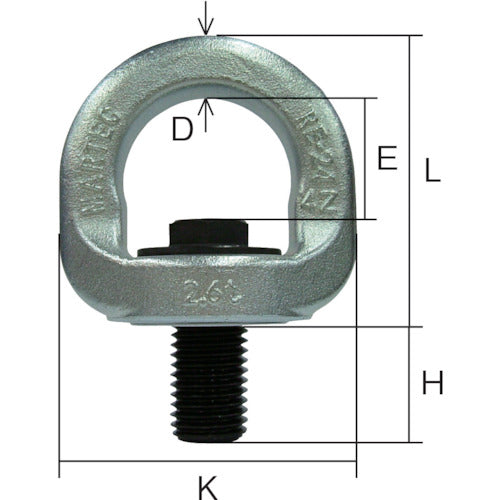

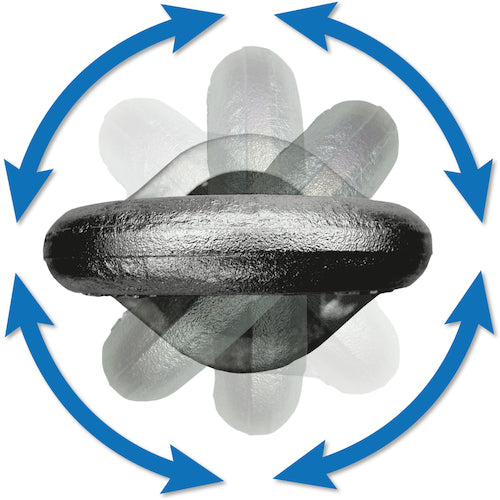

Catalogue number: RE-36 Features: ● Eye body rotates 360°. Applications: ● For lifting and transporting processing machines, molds, etc. Specifications: ● Basic load capacity (t): 6.0 ● Bolt size: M36 ● Dimension (mm) D: 30 ● Dimension (mm) E: 67 ● Dimension (mm) H: 54 ● Dimension (mm) K: 134 ● Dimension (mm) L: 136 ● Breaking load (kN): 294.19 ● Free-form eye bolt ● Safety factor of 5 or more in all directions Material/Finish: ● Special alloy steel
