MARTEC Insulated Swivel Set O-LI-N-10 O-LI-N-10 1S

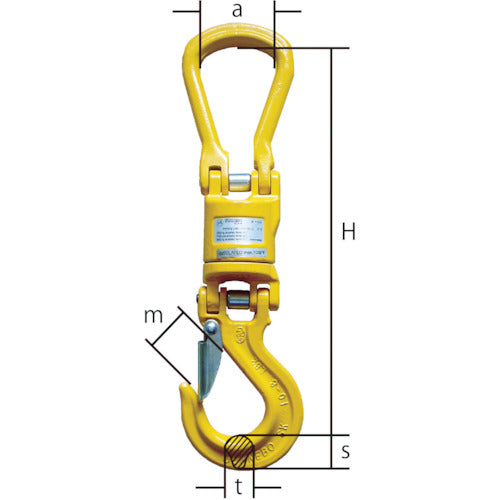

Catalogue number: O-LI-N-10 Features: ● With an insulation capacity of 1000V, welding work can be performed safely while the workpiece is suspended. Applications: ● For welding work while the workpiece is suspended with an overhead crane or electric chain block. Specifications: ● Basic load capacity (t): 2.5 ● Suitable chain wire diameter (mm): 10 ● Dimensions (mm) A: 66 ● Dimensions (mm) H: 339 ● Dimensions (mm) m: 34 ● Dimensions (mm) s: 29 ● Dimensions (mm) t: 23 ● Dimensions (mm) a: 66 ● With swivel function and anti-detachment fittings Material/Finish: ● Special alloy steel
