MARTEC Insulated Swivel Set O-LI-N-18/20 O-LI-N-18/20 1S

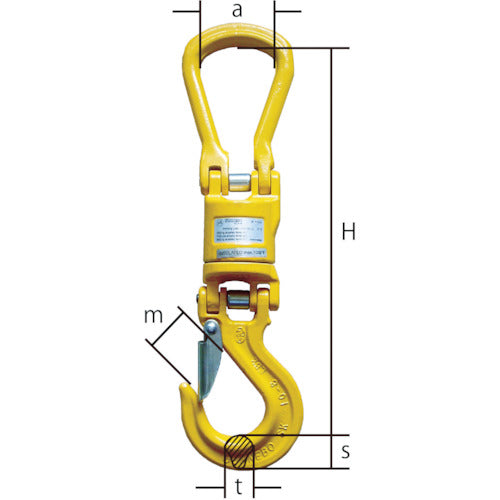

Catalogue number: O-LI-N-18/20 Features: ● With an insulation capacity of 1000V, welding work can be performed safely while the workpiece is suspended. Applications: ● For welding work while the workpiece is suspended with an overhead crane or electric chain block. Specifications: ● Basic load capacity (t): 10.0 ● Suitable chain wire diameter (mm): 20 ● Dimensions (mm) A: 105 ● Dimensions (mm) H: 560 ● Dimensions (mm) m: 59 ● Dimensions (mm) s: 51 ● Dimensions (mm) t: 41 ● Dimensions (mm) a: 105 ● With swivel function and anti-detachment fittings Material/Finish: ● Special alloy steel
