MARTEC Insulated Swivel Set O-LI-N-7/8 O-LI-N-7/8 1 piece

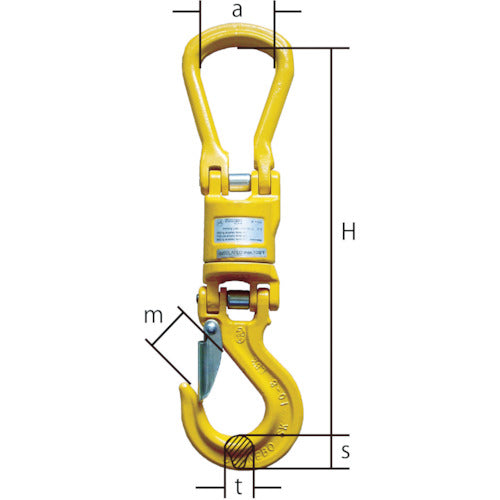

Catalogue number: O-LI-N-7/8 Features: ● With an insulation capacity of 1000V, welding work can be performed safely while the workpiece is suspended. Applications: ● For welding work while the workpiece is suspended with an overhead crane or electric chain block. Specifications: ● Basic load capacity (t): 1.6 ● Suitable chain wire diameter (mm): 8 ● Dimensions (mm) A: 50 ● Dimensions (mm) H: 265 ● Dimensions (mm) m: 27 ● Dimensions (mm) s: 21 ● Dimensions (mm) t: 18 ● Dimensions (mm) a: 50 ● With swivel function and anti-detachment fittings Material/Finish: ● Special alloy steel
