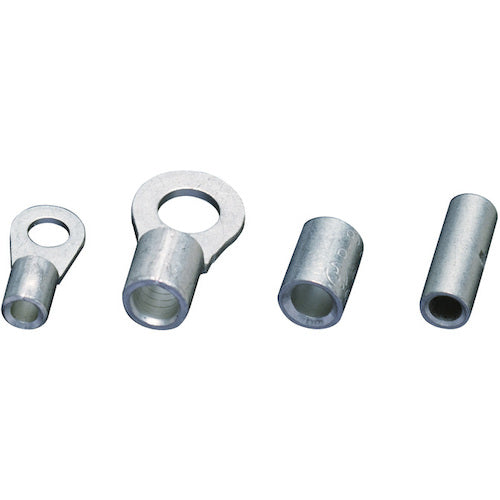

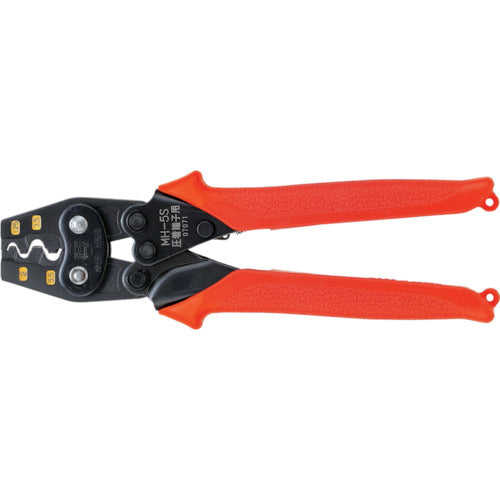

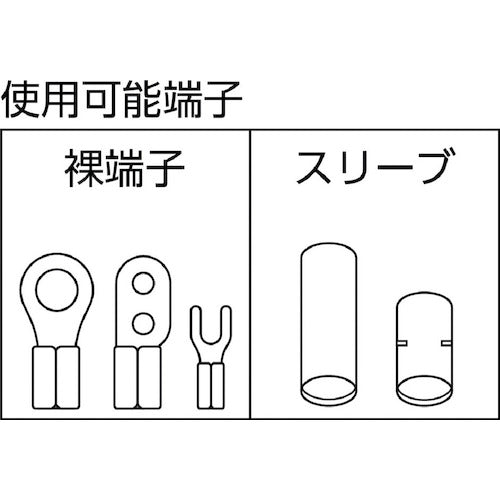

Catalogue number: MH-5S Features: ● Crimping work can be done safely and with reliable quality. ● Durability, passed 35,000 continuous tests. ● Built-in molding confirmation mechanism that does not open the die until proper crimping is achieved. ● Palm-sized mini type. ● Crimping marks are clear and sharp. ● Equipped with terminal temporary holding function. Applications: ● For crimping bare crimp terminals and sleeves. Specifications: ● Total length (mm): 178 ● Compatible wire ([MM2]): 0.25 to 6.64 ● Crimp terminal: bare crimp terminal ● Crimp terminal ([MM2]): 1.25, 2, 3.5, 5.5 ● Crimp terminal ([MM2]) for bare terminals: 1.25, 2, 3.5, 5.5 Material/Finish: ● Body: Steel ● Grip: Elastomer resin
