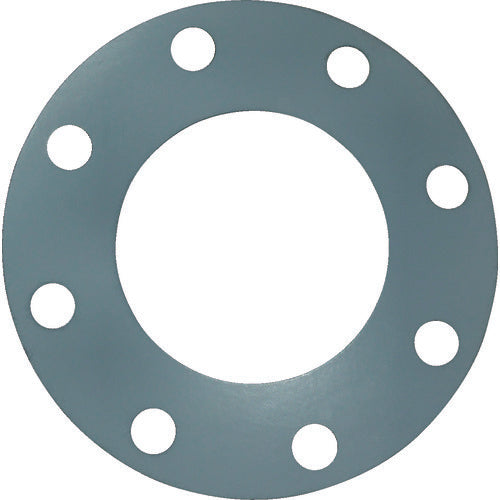

Matex High Pressure Rubber Gasket (3MPa) 15A x Thickness 1.5mm 9320-1.5-FF-10K-15A 1 piece

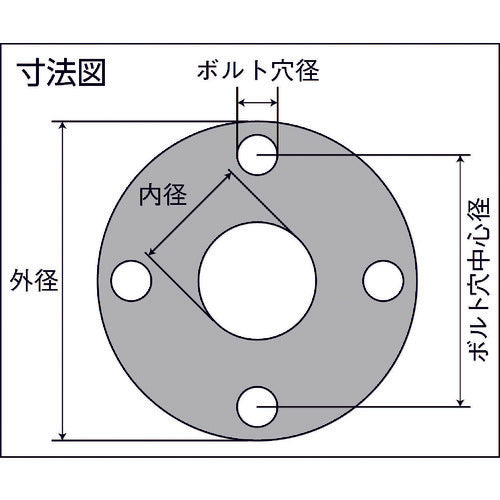

Catalog number: 9320-1.5-FF-10K-15A Features: ●Compared to rubber products of the same material, it has excellent heat resistance and electrical insulation performance comparable to PTFE. Applications: ●General industrial flange gaskets, seawater line piping and equipment gaskets, etc. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●Inner diameter (mm): 22 ●Outer diameter (mm): 95 ●Thickness (mm): 1.5 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 70 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 15 ●Operating temperature range: -47 to 150°C ●Pressure limit: 3MPa ●We can also manufacture gaskets to your specified dimensions, so please contact us. Material/Finish: ●Rubber (EPT)
