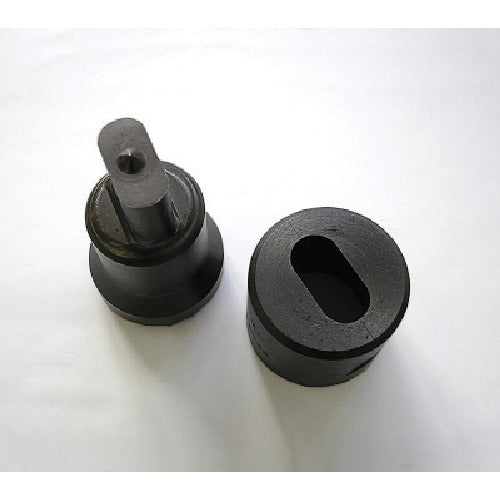

MIE Long Hole Die (for Takeda and Fujimura) 8X20mm MLD-8X20-TF 1 piece

Catalog number: MLD-8X20-TF Features: ●For accurate hole drilling. ●Can be installed on Takeda, Fujimura, and Showa Machinery. ●Used for long hole drilling of steel sections and steel plates by setting it on a dedicated punching machine. ●The outer diameter of the die is 43mm round. ●The die has two cuts to prevent rotation. Uses: ●Used by setting it on a large punching machine. Specifications: ●Actual size (mm): 9.5 x 21.5 ●Compatible models: Fujimura Iron Works FK-355E, FK-515, FK-605, Takeda Machinery S505E, S505N ●Compatible models: Fujimura Iron Works FK-355E, FK-515, FK-605, Takeda Machinery S505E, S505N Material/Finish: ●Carbon steel (SK-3) Note: ●Please select according to the punch part number.
