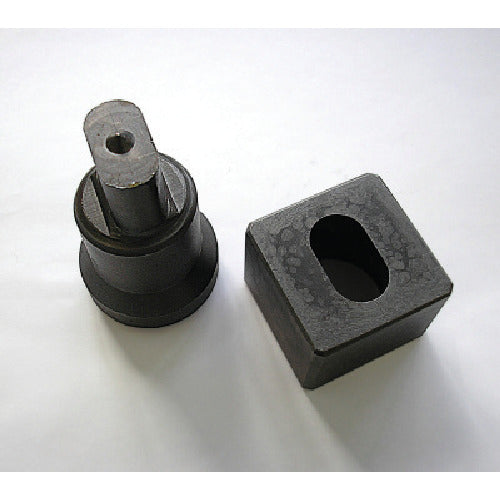

MIE Long Hole Die (for Showa Seiko) 15X20mm MLD-15X20-S 1 piece

Catalog number: MLD-15X20-S Features: ●For accurate hole drilling. ●Can be attached to Showa machines. ●Set on a dedicated punching machine to process long holes in steel sections and steel plates. ●The die is 42 mm square. Applications: ●Set on a large punching machine to use. Specifications: ●Actual size (mm): 16.5 x 21.5 ●Compatible models: Fujimura Iron Works FK-355E, FK-515, FK-605, Takeda Machinery S505E, S505N Material/Finish: ●Carbon steel (SK-3) Note: ●Please select according to the punch part number.
