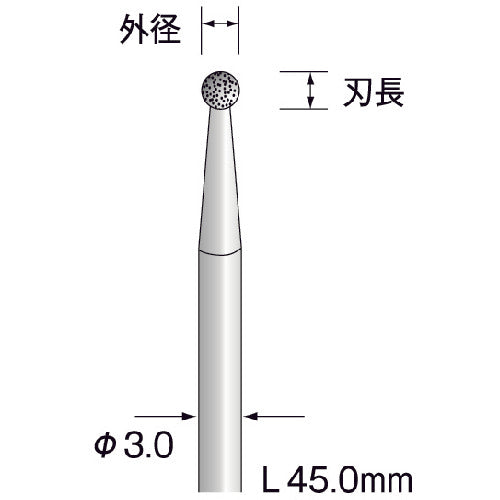

Minimo Electroplated CBN bar #325 φ0.9 AD5902 1 piece

Catalog number: AD5902 Features: ●Excellent electroplating technology provides high grinding performance and long life. Specifications: ●Grit (#): 325 ●Blade diameter (mm): 0.9 ●Blade length (mm): 0.9 ●Shaft diameter (mm): 3 ●Total length (mm): 45 ●Shape: Spherical ●Excellent electroplating technology provides high grinding performance and long life ●Maximum operating speed (rpm): 100000 ●Belt running speed (m/min): 325 ●Chuck inner diameter (mm): 0.9 ●R chamfer amount: 3 ●C chamfer amount: 100000 ●Compatible materials: Tool steel, alloy steel, general steel, stainless steel ●Shaft diameter: φ3.0 ●Blade diameter (mm): 0.9 ●Blade length (mm): 0.9 ●Total length (mm): 45 ●Shape: Spherical ●Excellent electroplating technology provides high grinding performance and long life
