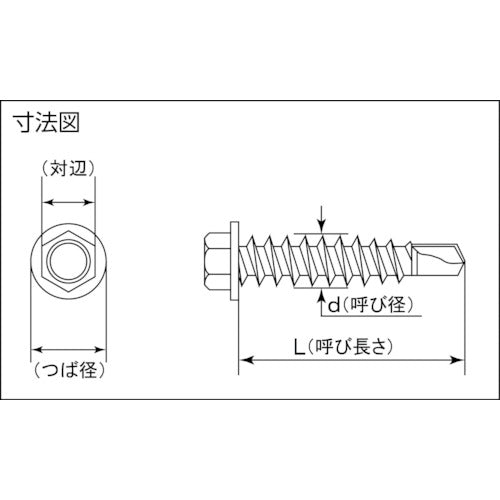

Catalog number: SHH4816-PC1 Features: ●Hexagonal head provides high torque transmission and is less likely to cam out, making it easy to work with. Applications: ●For sheet metal work and metal exterior wall installation. Specifications: ●Dimensions (mm) d: M5 ●Dimensions (mm) L: 16 ●Maximum compatible plate thickness (mm): 4 ●Flange diameter (mm): 10.5 ●Nominal dimensions (mm) d x L: M5 x 16 ●Type: Full thread type ●Face size (mm): 8 Material/Finish: ●Stainless steel (equivalent to SUS410) ●Surface treatment: Passivate
