MIYAGAWA Highly Corrosion Resistant Hexagonal Drill Screw MRX 5X16 20pcs HX48-16-PC1 1 bag

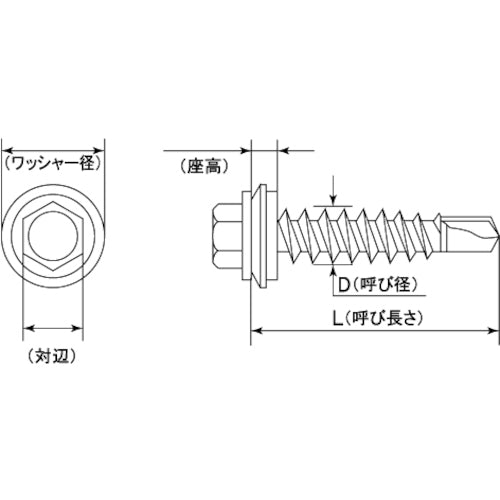

Catalog number: HX48-16-PC1 Features: ●This is an innovative drill screw that has the same high corrosion resistance as SUS304 products, but also has sufficient toughness and hardness, making it both highly corrosion resistant and easy to work with. ●The hexagonal head has a large torque transmission force and is less likely to cam out, making it easy to work with. Applications: ●For sheet metal work and metal exterior wall installation in environments where corrosion resistance is required. Specifications: ●Dimensions (mm) d: M5 ●Dimensions (mm) L: 16 ●Maximum compatible plate thickness (mm): 4.0 ●Flange diameter (mm): 10.5 ●Nominal dimensions (mm) d x L: M5 x 16 ●Type: Drill screw ●Face size (mm): 8 Material/Finish: ●Special stainless steel (MRX［［Ｒ上］］) ●Surface treatment: Passivate
