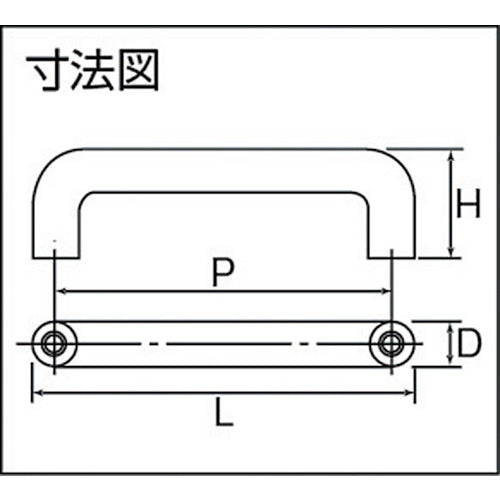

Catalog number: G-470-601 Features: ●Round washers are included, but they can also be installed without the washers. Applications: ●For glass and steel door handles. Specifications: ●Color: HL ●Width (mm): 31 ●Depth (mm): 73 (one side) ●Total length (mm): 598 ●Installation pitch (mm): 573 ●D (mm): 25 ●H (mm): 70 ●P (mm): 573 ●Pipe diameter (mm): 25 ●Total length L (mm): 598 ●Applicable door thickness: 10 to 40 mm Material/Finish: ●Stainless steel (SUS304), hairline finish Caution: ●Please be careful of the screw pitch when installing.
