MK Frame-mounted heavy-duty truck 200mm L-type C-1150-200 1 unit

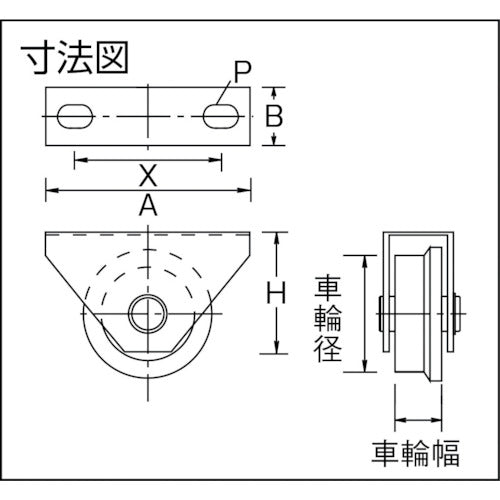

Catalog number: C-1150-200 Features: ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron. Applications: ● For trolleys. Specifications: ● Allowable load (daN): 1225 ● Allowable load (kgf): 1250 ● Wheel diameter (mm): 170 ● Wheel width (mm): 50 ● Mounting height H (mm): 200.0 ● Mounting seat A (mm): 290 ● Mounting seat B (mm): 70.0 ● Mounting pitch X (mm): 216 ● Mounting hole diameter P (mm): 35 x 20 ● Allowable load (N): 12750 Materials/Finish: ● Frame: Steel ● Frame surface treatment: Trivalent chromium plating finish ● Wheels: Ductile cast iron (FCD-450) Note: ● The allowable load is a reference value in the vertical direction.
