MK Frame Weight Vehicle 120mm V-Type C-1000-120 1 pc

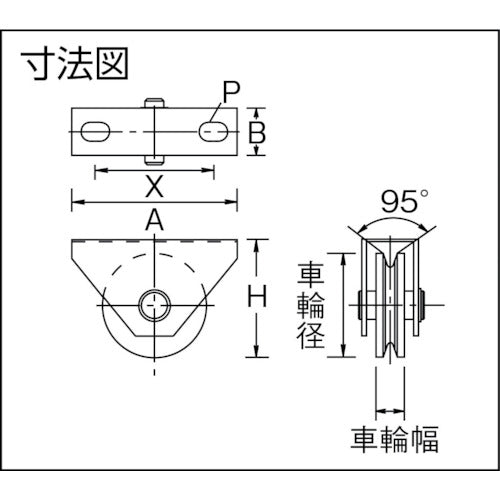

Catalog number: C-1000-120 Features: ●Ductile cast iron (FCD-450) wheels are used, so the strength is significantly increased compared to ordinary cast iron. Applications: ●For angles and flat bars. Specifications: ●Allowable load (daN): 490 ●Allowable load (kgf): 500 ●Wheel diameter (mm): 120 ●Wheel width (mm): 28 ●Mounting height H (mm): 125.5 ●Mounting seat A (mm): 145 ●Mounting seat B (mm): 39.5 ●Mounting pitch X (mm): 115 ●Mounting hole diameter P (mm): 15 x 11 ●Allowable load (N): 4902 Materials/Finish: ●Frame: Steel ●Frame surface treatment: Trivalent chromium plating finish ●Wheels: Ductile cast iron (FCD-450) Note: ●Allowable load is a reference value in the vertical direction.
