MK Frame Weight Vehicle 50mm V-Type C-1000-50 1 pc

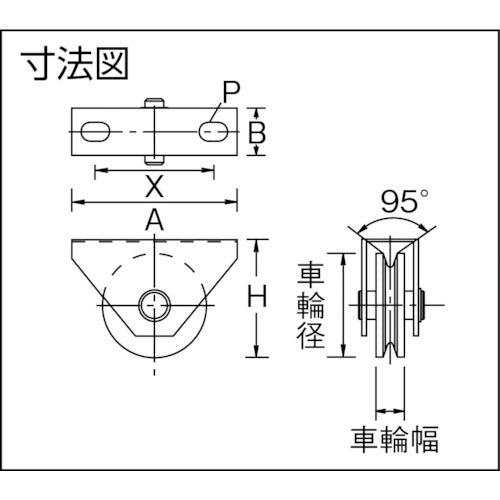

Catalog number: C-1000-50 Features: ●Ductile cast iron (FCD-450) wheels are used, so the strength is significantly increased compared to ordinary cast iron. Applications: ●For angles and flat bars. Specifications: ●Allowable load (daN): 171 ●Allowable load (kgf): 175 ●Wheel diameter (mm): 50 ●Wheel width (mm): 20 ●Mounting height H (mm): 64.0 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 33.0 ●Mounting pitch X (mm): 70 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 1716 Material/Finish: ●Frame: Steel ●Frame surface treatment: Trivalent chromium plating finish ●Wheels: Ductile cast iron (FCD-450) Note: ●Allowable load is a reference value in the vertical direction.
