MK KJ Flag Hinge 102mm HL S-515-100 1 pc

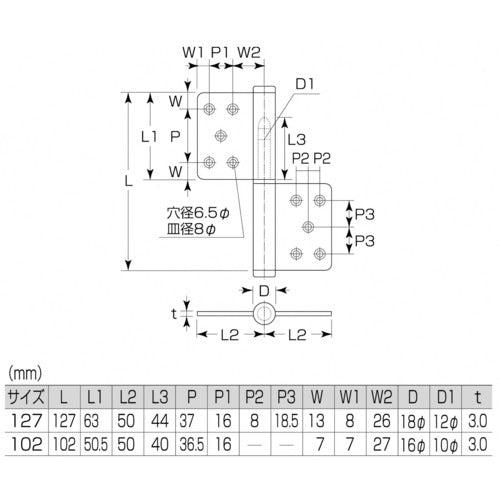

Catalog number: S-515-100 Features: ● Made of stainless steel, it has excellent corrosion resistance. ● Can be used on both the left and right. Applications: ● For steel doors, iron doors, etc. Specifications: ●Total length (mm): 102 ●Width (mm): 100 ●Thickness (mm): 3 ●Number of screw holes: 8 ●Hole diameter (mm): 6.5 ●D2 (mm): 16 ●L (mm): 102 ●t (mm): 3 ●L1 (mm): 50.5 ●L2 (mm): 50 ●L3 (mm): 40 ●P2 (mm): - ●W (mm): 7 ●W1 (mm) ●W2 (mm): 27 ●D (mm): 16φ ●D1 (mm): 10φ ●Size (mm): 102 x 100 ●P (mm): 36.5 ●P1 (mm): 16 ●P3 (mm): - Material/Finish: ●Stainless steel (SUS304) ●Surface finish: Hairline ●Core rod: Steel Note: ●Screws are not included.
