MK KJ Flag Hinge 127mm HL S-515-120 1 pc

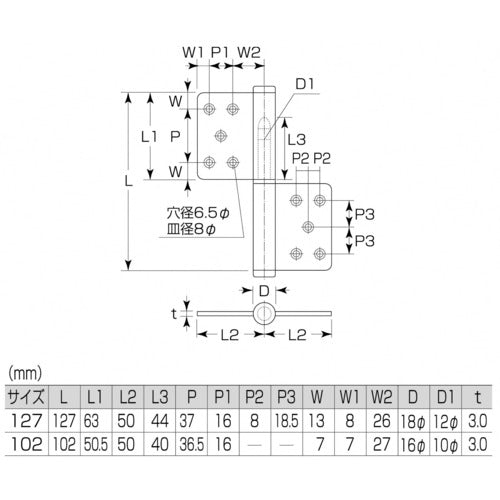

Catalog number: S-515-120 Features: ● Made of stainless steel, it has excellent corrosion resistance. ● Can be used on both the left and right. Applications: ● For steel doors, iron doors, etc. Specifications: ●Total length (mm): 127 ●Width (mm): 100 ●Thickness (mm): 3 ●Number of screw holes: 10 ●Hole diameter (mm): 6.5 ●D2 (mm): 18 ●L (mm): 127 ●t (mm): 3 ●L1 (mm): 63 ●L2 (mm): 50 ●L3 (mm): 44 ●W (mm): 13 ●W1 (mm): 8 ●W2 (mm): 26 ●D (mm): 18φ ●D1 (mm): 12φ ●Size (mm): 127 x 100 ●P2 (mm): 8 ●P3 (mm): 18.5 ●P (mm): 37 ●P1 (mm): 16 Material/Finish: ●Stainless steel (SUS304) ●Surface finish: Hairline ●Core rod: Steel Note: ●Screws are not included.
