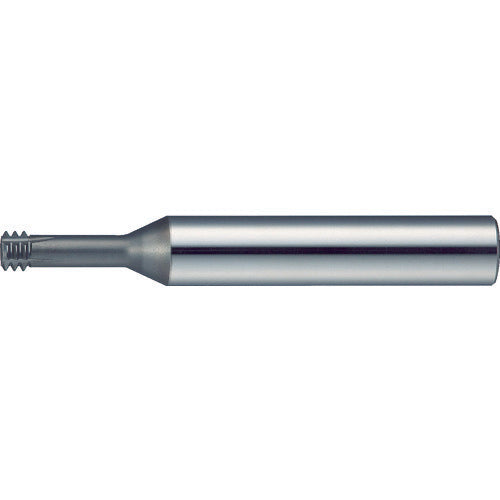

MOLDINO Thread cutting tool Epoch Thread Mill ET-0 8-12 5-PN ET-0.8-12.5-PN 1 piece

Catalog number: ET-0.8-12.5-PN Features: ●Thread cutting tool for high hardness materials of 45HRC or more. ●Reduces tool breakage, which is a particular problem in thread cutting. Applications: ●Workpiece: High hardness materials of 45HRC or more. Specifications: ●Nominal size: M5 ●Pitch (mm): 0.8 ●Number of teeth: 3 ●Blade diameter (mm): 3.8 ●Total length (mm): 50 ●Number of blades (pieces): 4 ●Shank diameter (mm): 6 ●Neck length (mm): 12.5 ●Surface treatment: PN coating ●PN coating for pilot hole required ●Lineup of 2x and 2.5x thread depths Material/Finish: ●Carbide
