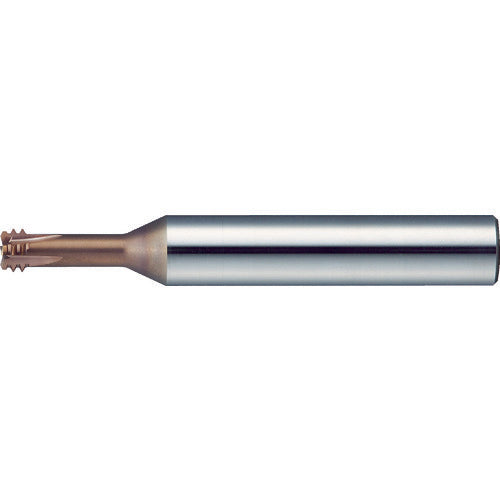

MOLDINO Epoch D Thread Mill EDT-1 5-20-TH EDT-1.5-20-TH 1 piece

Catalog number: EDT-1.5-20-TH Features: ●One tool can simultaneously drill pilot holes and thread in high-hardness materials with a hardness of 45HRC or more. ●High-strength blade design suppresses damage to the cutting edge in harsh machining environments with high-hardness steel. Applications: ●Workpiece: High-hardness materials with a hardness of 45HRC or more. Specifications: ●Nominal size: M10 ●Pitch (mm): 1.5 ●Number of teeth: 3 ●Blade diameter (mm): 7.5 ●Total length (mm): 70 ●Number of blades (pieces): 4 ●Shank diameter (mm): 10 ●Neck length (mm): 20 ●Surface treatment: TH coating ●PN coating for types requiring pilot holes ●Lineup of types for 2x and 2.5x thread depth Material/Finish: ●Carbide
