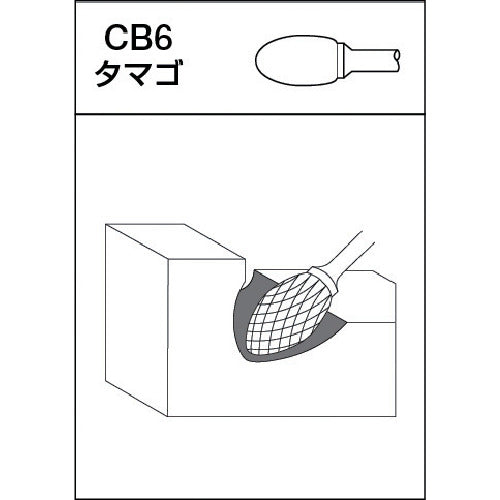

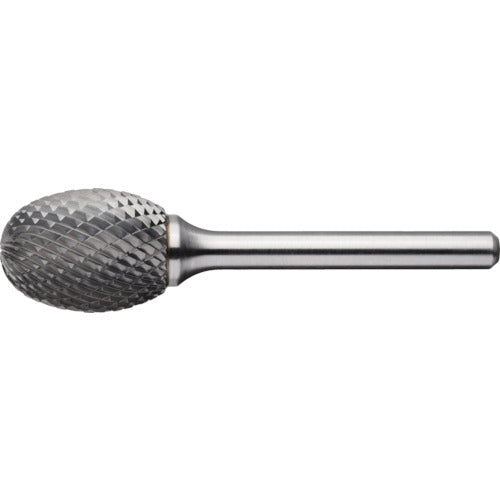

Catalog number: CB6C105 Features: ● Carbide bar with shank diameter of 6 mm. ● This is the most commonly used shape. ● Compared to spiral cut, the cutting resistance is small and the chips discharged are in powder form. ● Chattering (vibration) can be minimized. ● All carbide. Specifications: ● Shape: Egg-shaped (cross cut) ● Blade diameter (mm): 19 ● Blade length (mm): 25 ● Shaft diameter (mm): 6 ● Shaft length (mm): 45 ● Type: With brazing ● Maximum operating speed (rpm): 10000 ● Shank diameter 6 mm Caution: ● Always wear protective equipment such as a hard hat and safety glasses when working. ● The maximum operating speed is a recommended value.
