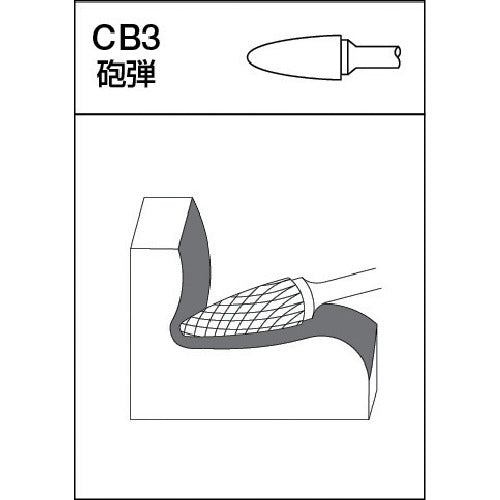

Catalog number: CB3C103 Features: ● Carbide bar with shank diameter of 6 mm. ● This is the most commonly used shape. ● Compared to spiral cut, the cutting resistance is small and the shape of the chips discharged is powdery. ● Chattering (vibration) can be minimized. ● All carbide. Specifications: ● Shape: Bullet type (cross cut) ● Blade diameter (mm): 9.5 ● Blade length (mm): 19 ● Shaft diameter (mm): 6 ● Shaft length (mm): 45 ● Type: With low ● Maximum operating speed (rpm): 20000 ● Total length (mm): 64 ● Shank diameter (mm): 6 ● Shank diameter 6 mm Caution: ● Always wear protective equipment such as a safety helmet and safety glasses when working. ● The maximum operating speed is a recommended value.
