浪速鉄工(株)

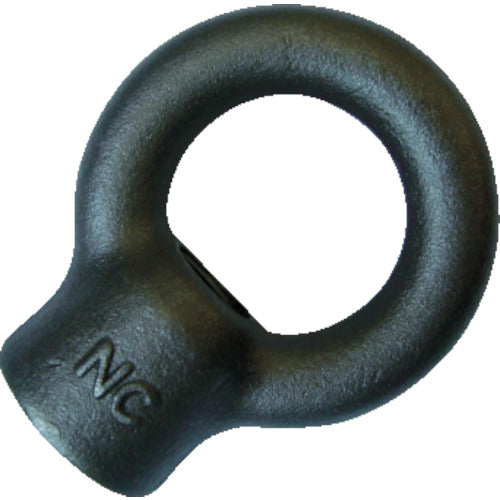

NANIWA Eye Nut M12 EN1000012 1 piece
NANIWA Eye Nut M12 EN1000012 1 piece
Regular price
¥460
Regular price
Sale price
¥460
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

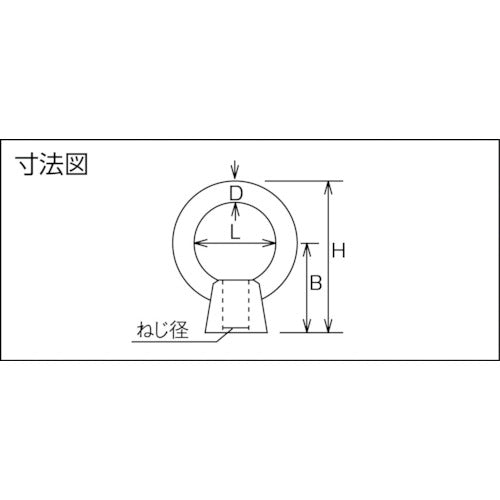

Catalogue number: EN1000012 Features: ● A nut with an integrated ring, manufactured by hot forging. Applications: ● Lifting heavy objects in civil engineering, construction, shipbuilding, molds, machinery and equipment. Specifications: ● Basic load capacity (t): 0.22 ● Load capacity (kN): 2.160 ● Thread diameter: M12 ● D (mm): 10.0 ● L (mm): 30 ● H (mm): 61.0 ● A (mm): 30 ● B (mm): 36 ● Dimension D (mm): 10 ● Forged product Material/Finish: ● Steel ● Surface treatment: Plain
