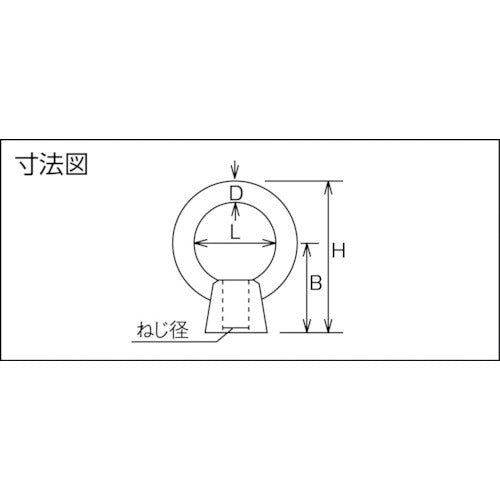

Catalog number: EN9000012 Features: ● A nut with an integrated ring, manufactured by hot forging. Applications: ● Lifting heavy objects such as civil engineering, construction, shipbuilding, molds, and machinery equipment. Specifications: ● Basic load capacity (t): 0.22 ● Load capacity (kN): 2.16 ● Screw diameter: M12 ● D (mm): 10 ● L (mm): 30 ● H (mm): 61 ● A (mm): 50 ● B (mm): 36 ● Electrolytic polishing finish with solidification heat treatment ● Forged product ● Made in Japan Material/Finish: ● Stainless steel (SUS304)
