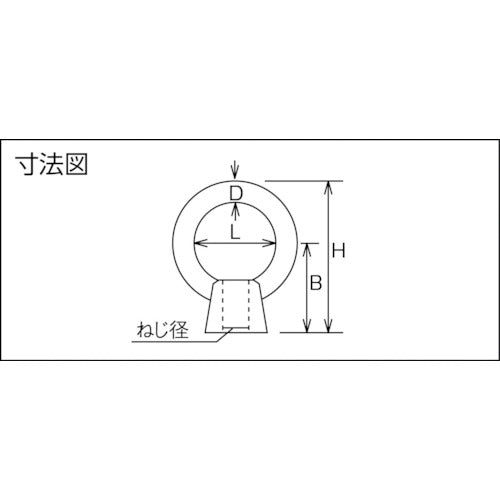

Catalog number: EN9000016 Features: ● A nut with an integrated ring, manufactured by hot forging. Applications: ● Lifting heavy objects such as civil engineering, construction, shipbuilding, molds, and machinery equipment. Specifications: ● Basic load capacity (t): 0.45 ● Load capacity (kN): 4.41 ● Screw diameter: M16 ● D (mm): 12.5 ● L (mm): 35 ● H (mm): 72 ● A (mm): 60 ● B (mm): 42 ● Electrolytic polishing finish with solidification heat treatment ● Forged product ● Made in Japan Material/Finish: ● Stainless steel (SUS304)
