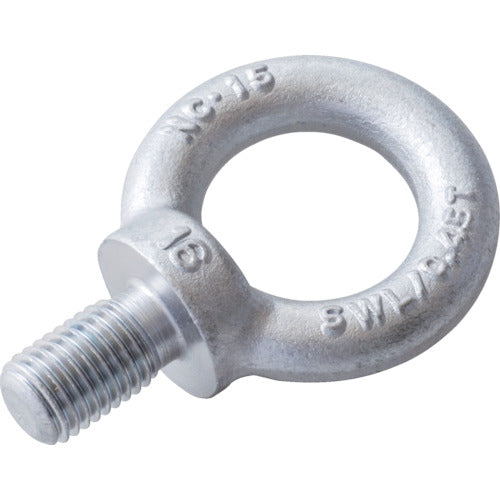

NANIWA Eyebolt Crystal Coat M20 EBH000020 1 pc

Catalogue number: EBH000020 Features: ●Coated with a highly corrosion-resistant plating. ●Unlike the plating applied to normal eye bolts, this is plated to be highly resistant to corrosion. Applications: ●Lifting heavy objects such as those in civil engineering, construction, shipbuilding, molds, and machinery equipment. Specifications: ●Basic load capacity (t): 0.63 ●Load capacity (kN): 6.18 ●Bolt size: M20 ●Total length (mm): 101 ●Neck length (mm): 30 ●Hole diameter (mm): 40 ●B (mm): 30 ●D (mm): 16 ●H (mm): 71 ●L (mm): 40 ●Thread diameter: M20 ●M20 Material/Finish: ●Steel ●Surface treatment: Crystal coat
