NANIWA Eyebolt, Raw Material, M16 x 50, EL1001650, 1 pc

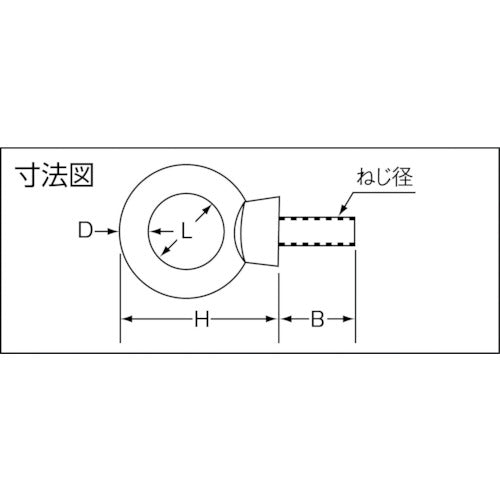

Catalog number: EL1001650 Features: ●Bolt with integrated ring, manufactured by hot forging. ●Long neck, can be used for thick materials. Applications: ●Lifting heavy objects such as civil engineering, construction, shipbuilding, molds, and machinery equipment. Specifications: ●Basic load capacity (t): 0.45 ●Load capacity (kN): 4.410 ●Bolt size: M16 ●Total length (mm): 110 ●Neck length (mm): 50 ●Hole diameter (mm): 35 ●B (mm): 50 ●D (mm): 12.5 ●H (mm): 60 ●L (mm): 35 ●Thread diameter: M16 ●No hex nut ●M16 x 50 Material/Finish: ●Steel (SS400) ●Surface treatment: Plain
