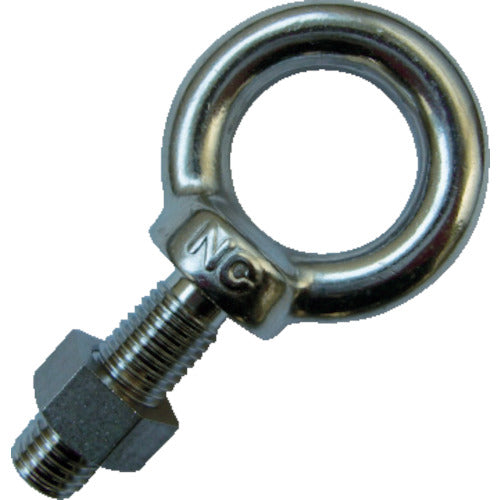

NANIWA Eyebolt SUS304 M12 x 50 EL9101250 1 piece
NANIWA Eyebolt SUS304 M12 x 50 EL9101250 1 piece
Regular price
¥2,783
Regular price
Sale price
¥2,783
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

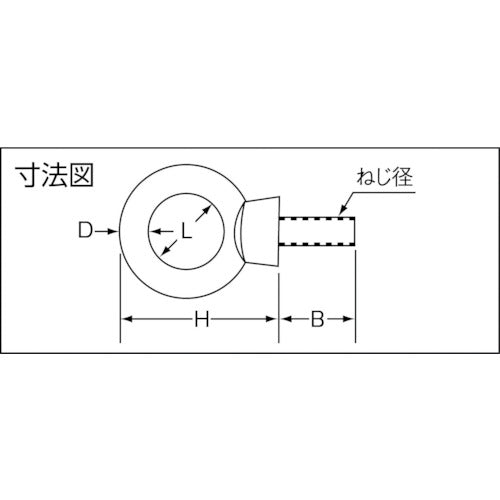

Catalog number: EL9101250 Features: *Bolt with integrated ring, manufactured by hot forging. *Long neck, can be used for thick materials. Applications: *Lifting heavy objects such as civil engineering, construction, shipbuilding, molds, machinery equipment, and electrical panels. Specifications: *Basic load capacity (t): 0.22 *Load capacity (kN): 2.16 *Bolt size: M12 *Neck length (mm): 50 *B (mm): 50 *D (mm): 10 *H (mm): 51 *L (mm): 30 *Thread diameter: M12 *Hexagonal nut included Material/Finish: *Stainless steel (SUS304)
