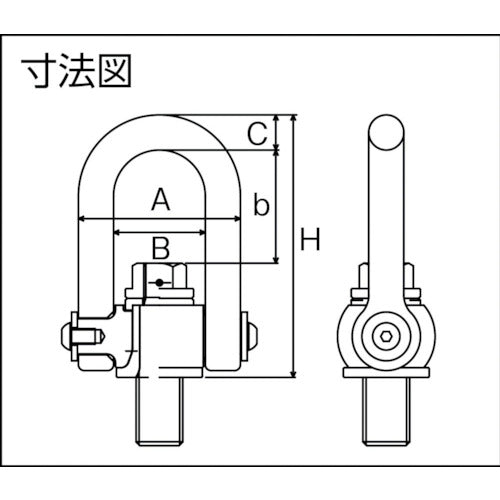

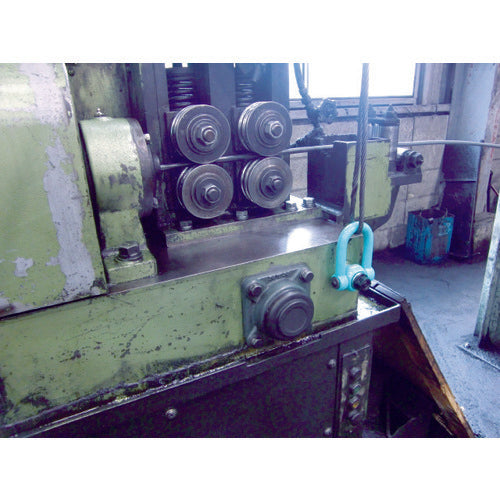

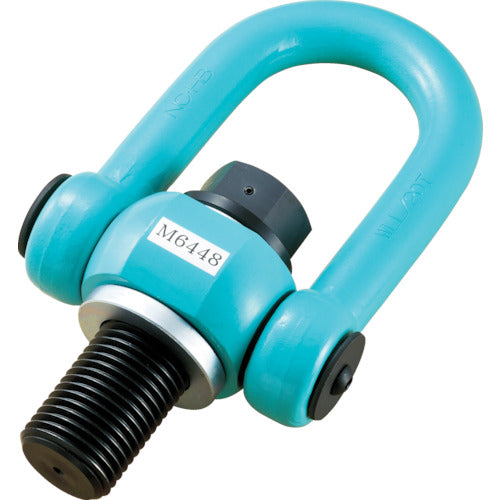

Catalog number: HBM4836 Features: ●Rotates 360 degrees around the lifting axis of a heavy object and 180 degrees in the lifting direction. ●Can be used safely even when performing horizontal, diagonal, or lifting operations that are dangerous with JIS eye bolts. Applications: ●Used to lift heavy objects such as molds, civil engineering, construction, shipbuilding, precision and machine tools, and transportation. Specifications: ●Basic load capacity (t): 9 ●Bolt size: M48 ●Neck length (mm): 70 ●Spanner size (mm): 46 ●Dimensions (mm) A: 154 ●Dimensions (mm) B: 90 ●Dimensions (mm) C: 32 ●Dimensions (mm) H: 235 ●Dimensions (mm) b: 109 ●Dimensions (mm) b: 109 Material/Finish: ●SCM435
