NDC High Frequency Inverter Power Supply HFI-130B 1 unit

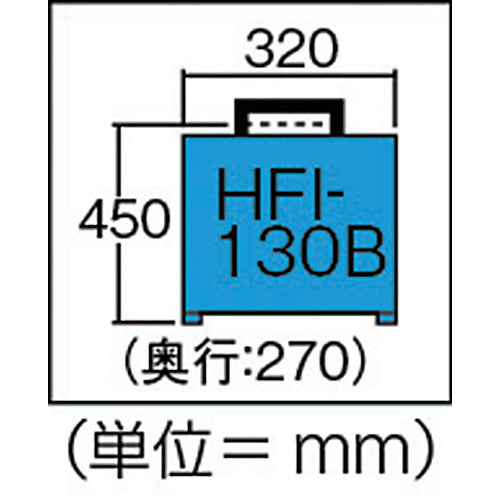

Catalog number: HFI-130B Features: ●High power output capacity of 13kVA, two HDGT-18P class units can be used simultaneously. ●Equipped with a high-performance general-purpose inverter, reliability and maintainability have been improved. ●Reset button configuration at the time of tripping makes it easy to restart. ●Built-in leakage breaker (for leakage current). Specifications: ●Input side voltage: Three-phase AC 200V, 220V ●Input side frequency: 50Hz/60Hz, 60Hz ●Input side power equipment capacity: 17.0kVA ●Output side voltage: Three-phase AC 200V ●Output side frequency: 400Hz ●Output side output capacity: 13.0kVA ●Width (mm): 320 ●Height (mm): 450 ●Depth (mm): 270 ●Power cord length (m): 3 ●Power ON/OFF switch ●Supports history investigation of operation stop (for repairs and diagnosis) ●Inverter control method: Sine wave PWM method Note: ●A dedicated cable is required to connect to the grinder.
