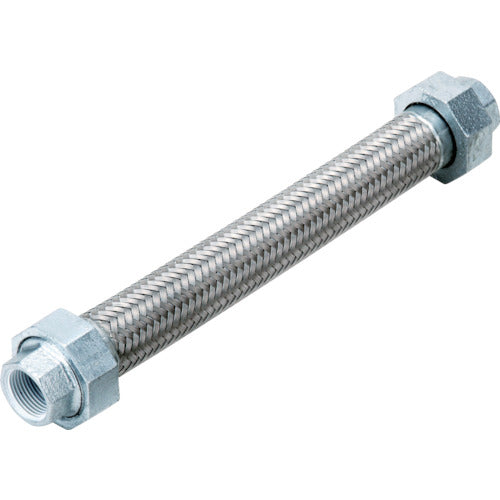

NFK Sealcoat Union Flexible Hose (Non-welded) Union FCMB 32A x 500L NK-1100-P/FCMB-32A-500L 1 pc

Catalog number: NK-1100-P/FCMB-32A-500L Features: ●Sealant is applied in advance, which significantly improves work efficiency. ●The sealant is uniform and of optimal thickness, eliminating unevenness and maintaining high quality even after installation. ●The joint is assembled without welding, so it has good corrosion resistance. Applications: ●For absorbing pipe misalignment and vibration. ●For countermeasures against subsidence and earthquakes. Specifications: ●Nominal diameter A: 32 ●Nominal diameter B: 1 1/4 ●Total length (mm): 500 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 120℃ (up to 100℃ depending on the fluid) ●Compatible fluids: cold and hot water, oil, air, gas (limited to non-corrosive fluids) ●Nominal diameter: 1-1/4B Material/Finish: ●Flexible part: Stainless steel (SUS304) ●Union part: Cast iron (FCMB)
