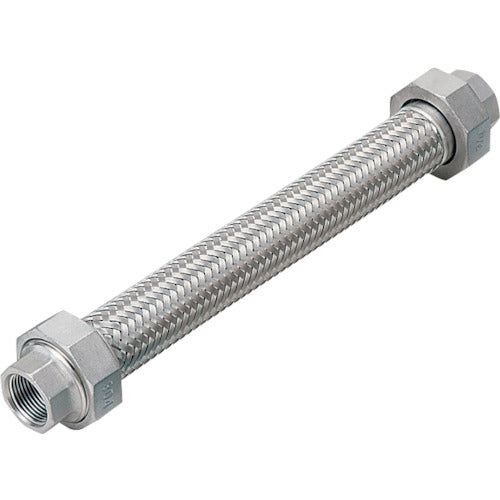

NFK Fit Union Type Flexible Hose (Non-welded) Union SUS304 (ALLSUS304) 10A x 1000L NK-1100/SUS304-10A-1000L 1 pc

Catalog number: NK-1100/SUS304-10A-1000L Features: ●Good corrosion resistance due to non-welded fitting. ●Excellent heat resistance, pressure resistance, and earthquake resistance. ●Utility model registration No. 3071958. Applications: ●For absorbing misalignment and vibration in piping. Specifications: ●Nominal diameter A: 10 ●Nominal diameter B: 3/8 ●Total length (mm): 1000 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -40 to 200 ●Compatible fluids: cold and hot water, steam, oil, air, gas (limited to non-corrosive fluids) ●Nominal diameter (mm): 17.30 Material/Finish: ●Flexible part: Stainless steel (SUS304) ●Union part: Stainless steel (SCS13)
