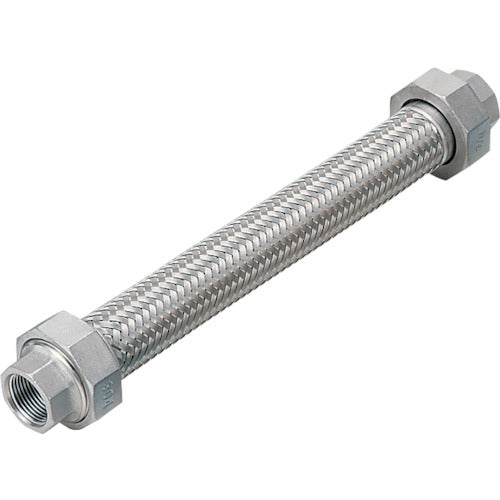

NFK Fit Union Type Flexible Hose (Non-welded) Union SUS304 (ALLSUS304) 15A x 300L NK-1100/SUS304-15A-300L 1 pc

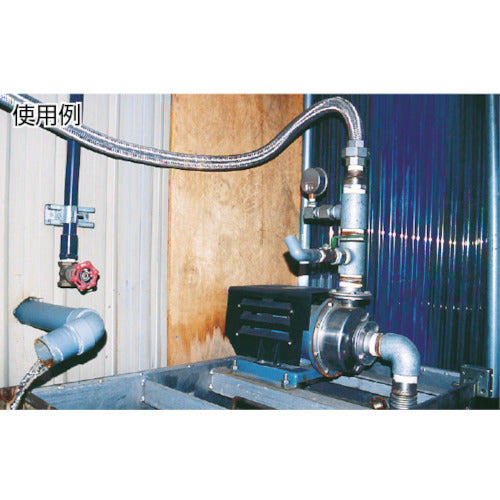

Catalog number: NK-1100/SUS304-15A-300L Features: ●The fittings are made of stainless steel, so they are resistant to rust and have excellent durability. ●Lengths other than those listed are also available. ●The fittings are assembled without welding, so they have good corrosion resistance. Applications: ●For absorbing misalignment and vibration in piping. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●Total length (mm): 300 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -40 to 200 ●Compatible fluids: cold and hot water, steam, oil, air, gas (limited to non-corrosive fluids) ●Nominal diameter (mm): 21.70 Material/Finish: ●Flexible part: Stainless steel (SUS304) ●Union part: Stainless steel (SCS13)
