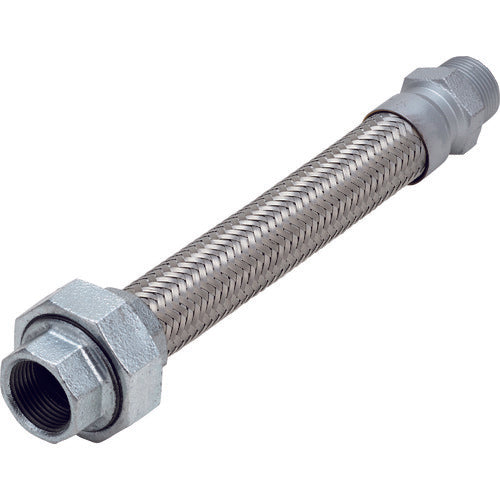

NFK Union/Nipple Type Flexible Hose Fitting FCMB-SS400 10A x 300L NK-1900/FCXSS-10A-300L 1 Piece

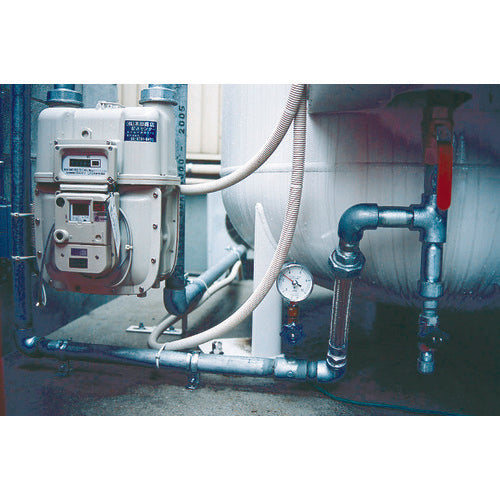

Catalog number: NK-1900/FCXSS-10A-300L Features: ●Easy piping and smooth operation. ●Available for diameters and lengths other than those listed. Applications: ●General piping such as absorbing misalignment. ●Applicable fluids: cold and hot water, steam, oil, gas (non-corrosive fluids only) Specifications: ●Nominal diameter A: 10 ●Nominal diameter B: 3/8 ●Total length (mm): 300 ●Compatible fluids: cold and hot water, oil, air, gas (non-corrosive fluids only) ●Nominal diameter (mm): 17.30 ●Maximum operating pressure: 1MPa ●Operating temperature range: -10 to 100°C ●Connection: Tapered male thread (R) x tapered female thread (Rc) Material/Finish: ●Flexible part: Stainless steel (SUS304) ●Union/Nipple part: Cast iron (FCMB), carbon steel (SS400)
