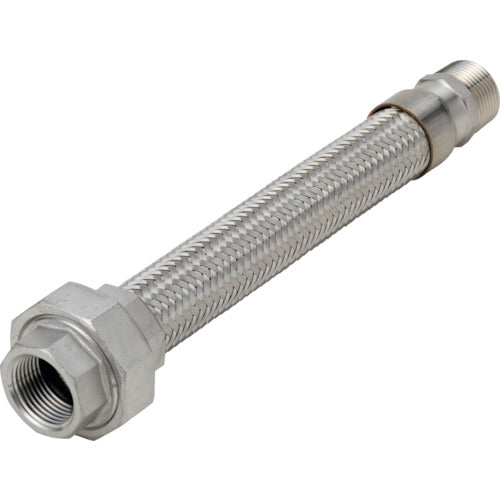

NFK Union/Nipple Type Flexible Hose Fitting SUS304 (ALLSUS304) 40A x 300L NK-1900/SUS304-40A-300L 1 pc

Catalog number: NK-1900/SUS304-40A-300L Features: ●The fittings are made of stainless steel, so they are resistant to rust and have excellent durability. ●We can also accommodate diameters and lengths other than those listed. ●Easy piping. Applications: ●For general piping such as absorbing misalignment. Specifications: ●Nominal diameter A: 40 ●Nominal diameter B: 1 1/2 ●Total length (mm): 300 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -100 to 200℃ ●Connection method: Tapered male thread (R) x tapered female thread (Rc) ●Compatible fluids: cold and hot water, steam, oil, air, gas (limited to non-corrosive fluids) ●Nominal diameter (mm): 48.60 Material/Finish: ●Flexible part: Stainless steel (SUS304) ●Union/Nipple part: Stainless steel (SCS13)
